The Hydra System is a modular, power-free decontamination solution that connects to the portable RDS 6110 unit to disinfect multiple rooms from a single control point. With tamper-proof, low-profile spray nozzles and expandable design, it’s ideal for facilities needing fast, effective, and scalable infection control.
The Hydra System works by connecting to the portable AeroClave RDS 6110 unit, which supplies the power, fluid, and air needed to operate the system. From a single control hub, the Hydra distributes disinfectant through up to 12 tamper proof spray nozzles installed throughout different rooms or areas, allowing multiple spaces to be decontaminated efficiently without requiring power at each location.

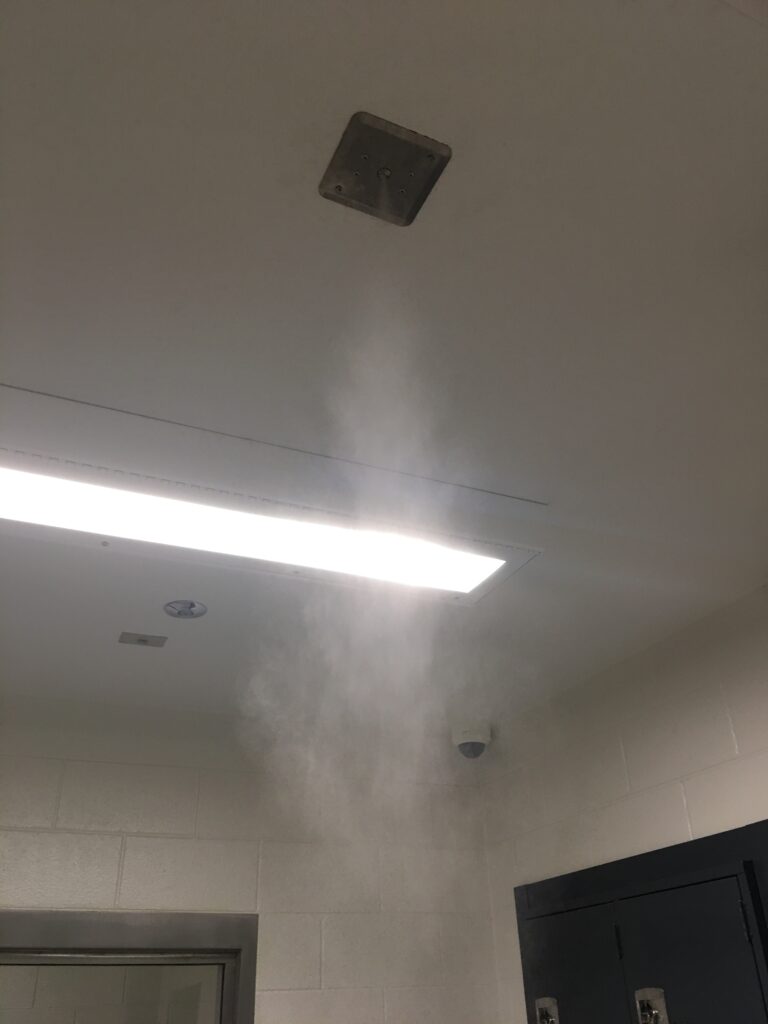

Example: Here, the Hydra System spray nozzle is installed in the ceiling of a fire station’s locker room. The nozzle connects to the central Hydra System Hub, which receives disinfectant fluid and air from the portable RDS 6110 unit. This setup allows the entire room to be decontaminated quickly and effectively with the push of a button. No additional power source is needed in the room itself, making it a seamless and cost-effective solution for high-traffic areas.

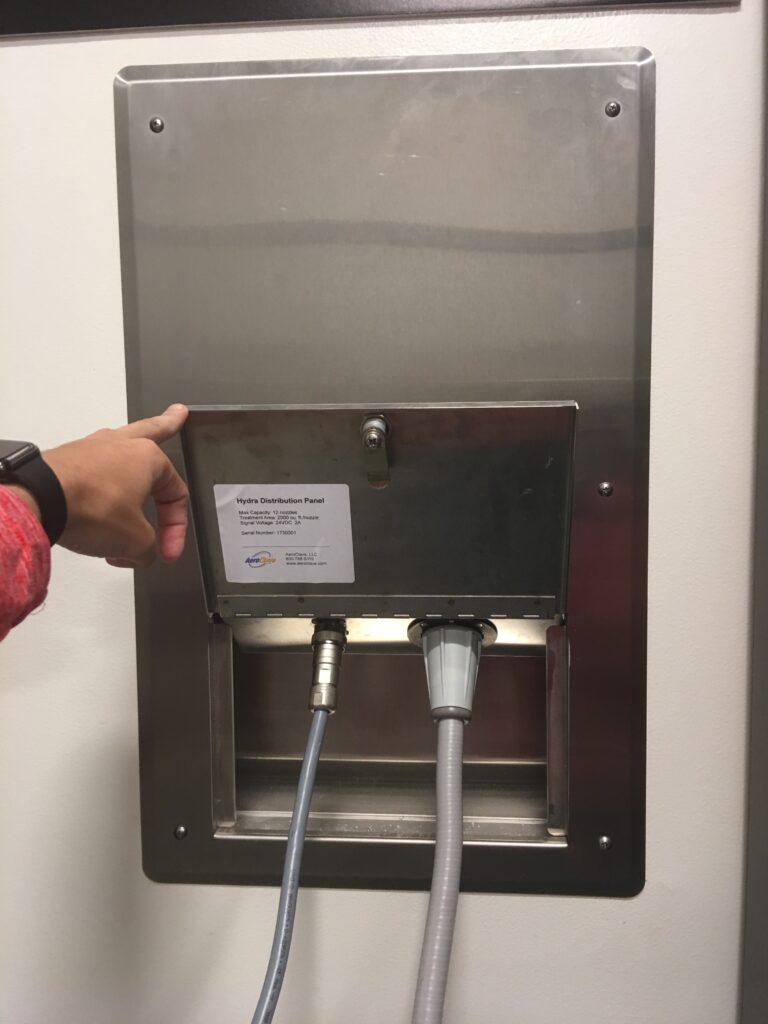

The Hydra System operates through a central Hydra System Hub, which acts as the main control point and can connect to up to 12 rooms or areas. The Hub receives power, disinfectant fluid, and air from the portable RDS 6110 unit via two quick connect adapters. This design requires no local power source, making it easy to integrate into both new and existing facilities.

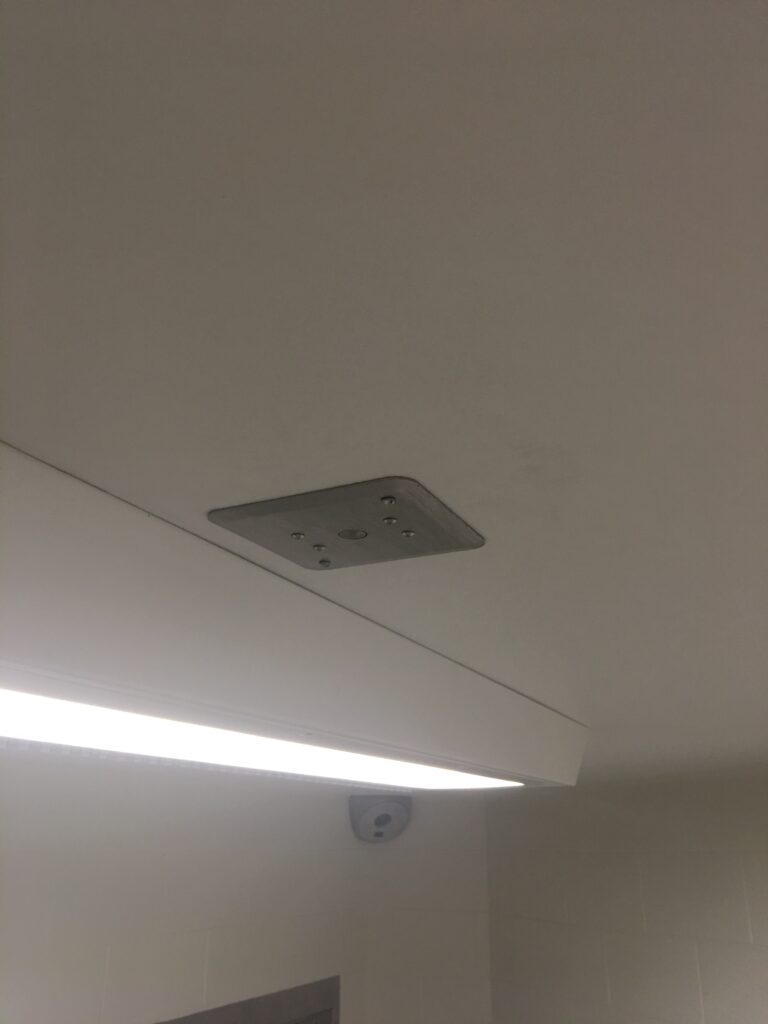

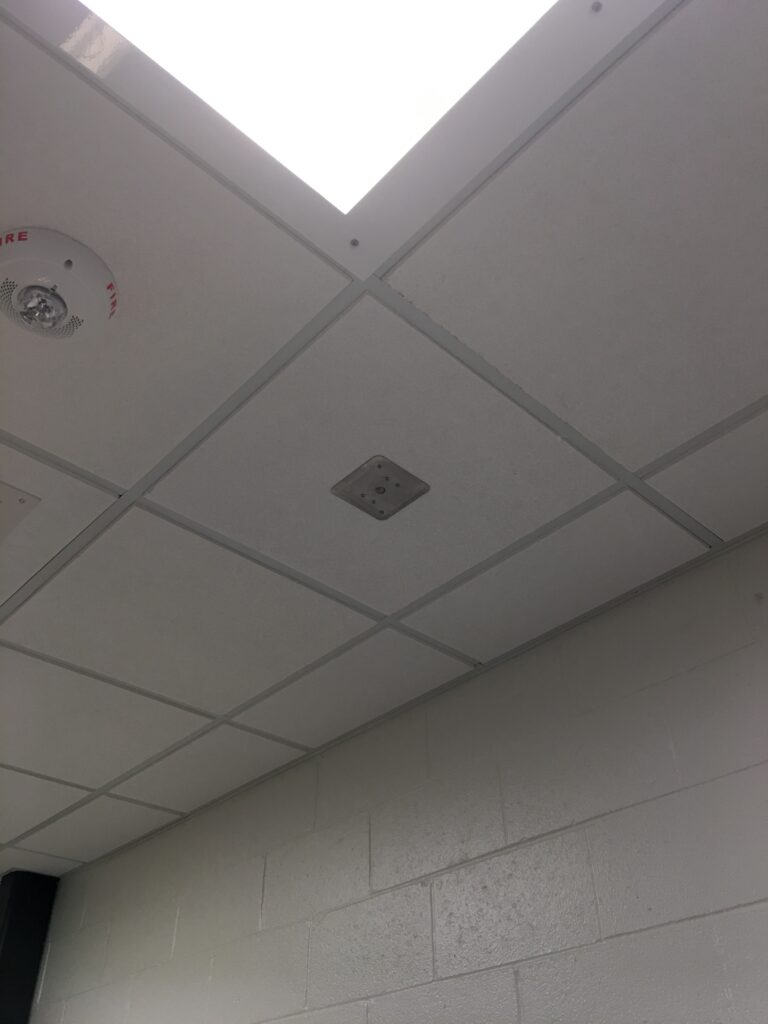

Each remote spray nozzle is installed up to 50 feet away from the Hub and is designed to be tamper proof and anti ligature, making it safe for sensitive environments. These nozzles are flush mounted, low profile, and built to deliver AeroClave’s disinfectant directly into the space. With this setup, operators can control which areas to decontaminate, all from a single RDS 6110 unit.
